Access from campus
Due to the cyberattack, eduroam does not currently support ssh connections, only https connections.
This means we can not use eduroam to connect to a cloud cix VM.
To circumvent this massive PITA we will connect to our VM using lugh, which allows users to ssh to public IP addresses.
Ethernet Cable users
For those using ethernet cables, step through the following code blocks to change your routing table.
This will let you connect to lugh and the internet at the same time which is better than the current state.
VPN users can skip to obtaining an IP address from Lugh.
Check your routing tables
When connected to eduroam, run route -n to check your routing tables. We will use this against your tables when the ethernet cable is connected to identify the connection.
barry@YT-1300:/data$ route -n
Kernel IP routing table
Destination Gateway Genmask Flags Metric Ref Use Iface
0.0.0.0 140.203.224.1 0.0.0.0 UG 600 0 0 wlp2s0
140.203.224.0 0.0.0.0 255.255.248.0 U 600 0 0 wlp2s0
169.254.0.0 0.0.0.0 255.255.0.0 U 1000 0 0 wlp2s0
172.17.0.0 0.0.0.0 255.255.0.0 U 0 0 0 docker0
Now plug in your ethernet cable and re-run the command:
barry@YT-1300:/data$ route -n
Kernel IP routing table
Destination Gateway Genmask Flags Metric Ref Use Iface
0.0.0.0 10.209.22.1 0.0.0.0 UG 100 0 0 enp0s31f6
0.0.0.0 140.203.224.1 0.0.0.0 UG 600 0 0 wlp2s0
10.209.22.0 0.0.0.0 255.255.254.0 U 100 0 0 enp0s31f6
140.203.224.0 0.0.0.0 255.255.248.0 U 600 0 0 wlp2s0
169.254.0.0 0.0.0.0 255.255.0.0 U 1000 0 0 wlp2s0
172.17.0.0 0.0.0.0 255.255.0.0 U 0 0 0 docker0
We will use 10.209.22.1 in the subsequent commands.
Note
The gateway router associated with the ethernet cable will be different depending where you are located on campus.
Permit both internet access and ssh access
To allow your laptop to connect to both the internet and lugh at the same time (also syd), run the following lines of code substituting your gateway router IP address in place of 10.209.22.1.
sudo ip route add 140.203.137.28 via 10.209.22.1;
sudo ip route add 10.80.222.10 via 10.209.22.1;
sudo ip route del default via 10.209.22.1
In essence, we are telling our laptop to use the ethernet cable for lugh and syd, and to use WIFI for internet connection instead of the ethernet cable.
Thanks to Brian O’Sullivan for walking through this with me.
Create an alias for this command - you need to run it everytime the ethernet connection is disrupted. Name it after the building you are in!
alias IT_routing="sudo ip route add 140.203.137.28 via 10.209.22.1; sudo ip route add 10.80.222.10 via 10.209.22.1; sudo ip route del default via 10.209.22.1"
Obtain Lugh IP address
This is straight forward - connect to lugh and run the command curl "https://ipinfo.io/ip".
Note
Once again, your result may differ significantly based on your location on campus.
bdigby@lugh:/data/bdigby$ curl "https://ipinfo.io/ip"
140.203.12.52bdigby@lugh:/data/bdigby$
The public IP address associated with lugh is 140.203.12.52 - we will need this for filling out the JSON generator.
Fill JSON file

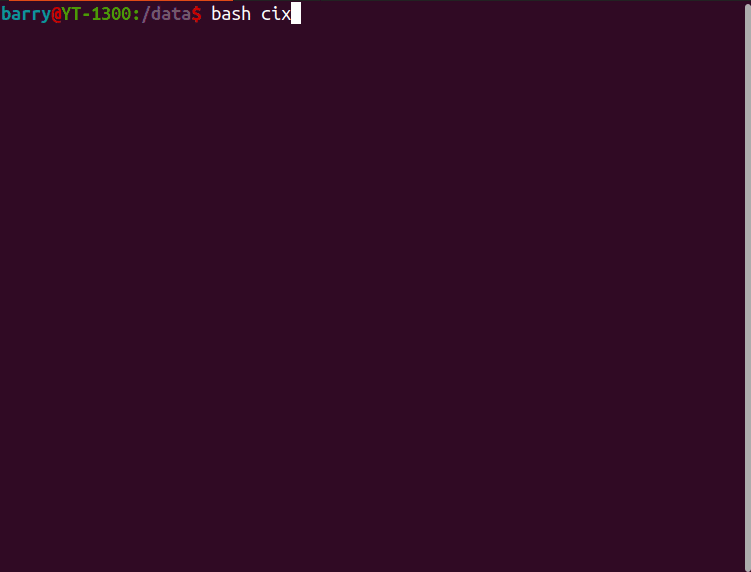

You can create a VM using the cloud cix website or the JSON generator which makes every effort to simplify the process for you.
Note

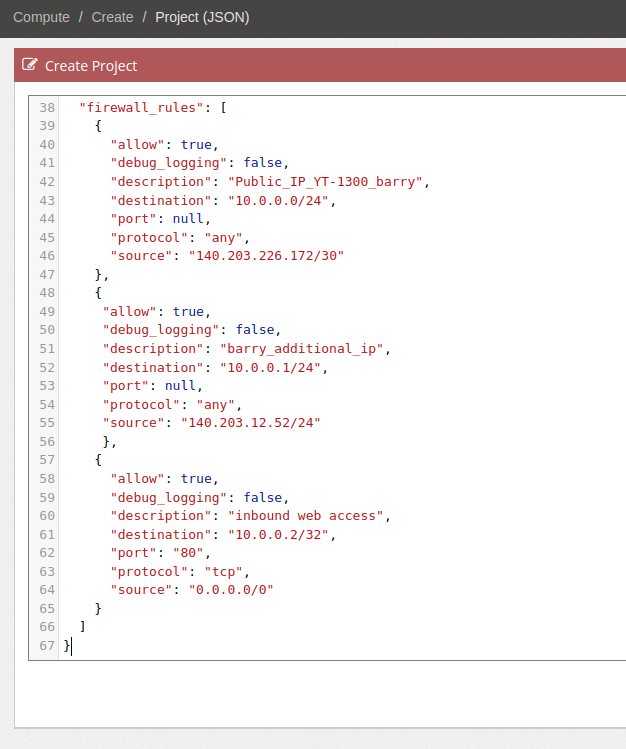

The script automatically creates a firewall rule allowing your current connection to access the VM. This works well at home, but will not work on eduroam. We need to provide the public IP address associated with lugh to the script by entering it manually.
The script adds /24 to the IP address entered manually - this means that the final 2 fields of the IP address accept all IP addresses in the range of 1-255:
140.203.226.172/32= accepts IP address140.203.226.172.140.203.226.172/24= accepts IP address in ranges140.203.226.1-255.140.203.226.172/16= accepts IP address in ranges140.203.1-255.1-255
and so on..

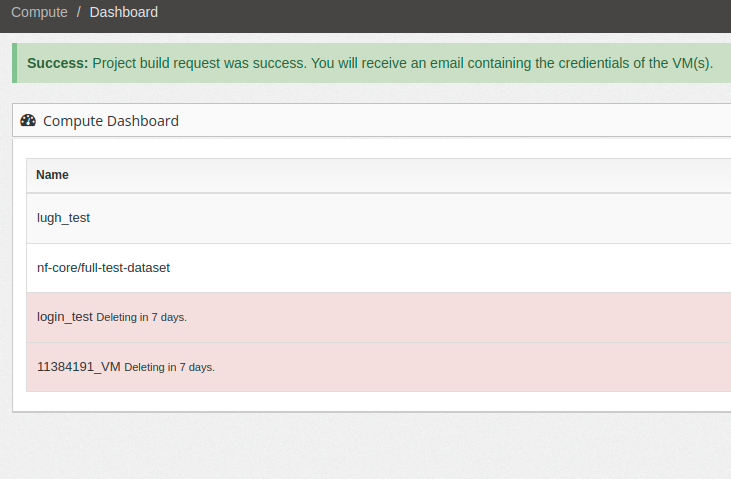

Create VM
Assume you all know where to find the VM builder on your account..
Access VM via Lugh
Once you recieve an email from cloud cix with your VM login details, you can access your VM via lugh.
Note
the IP address to ssh to is found under View > VMs > Network > Public IP
barry@YT-1300:/data$ ssh bdigby@lugh.nuigalway.ie
bdigby@lugh.nuigalway.ie's password:
Last login: Thu Feb 24 17:43:05 2022 from 10.209.22.137
,
(@|
,, ,)|_____________________________________
//\\8@8@8@8@8@8 / _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ \
\\//8@8@8@8@8@8 \_____________________________________/
`` `)|
(@|
`
_ _
| | _ _ __ _| |__
| | | | | |/ _` | '_ \
| |__| |_| | (_| | | | |
|_____\__,_|\__, |_| |_|
|___/
,
(@|
,, ,)|_____________________________________
//\\8@8@8@8@8@8 / _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ \
\\//8@8@8@8@8@8 \_____________________________________/
`` `)|
(@|
`
bdigby@lugh:/data/bdigby$ ssh administrator@217.74.56.142
Warning: Permanently added '217.74.56.142' (ECDSA) to the list of known hosts.
administrator@217.74.56.142's password:
Welcome to Ubuntu 20.04 LTS (GNU/Linux 5.4.0-26-generic x86_64)
* Documentation: https://help.ubuntu.com
* Management: https://landscape.canonical.com
* Support: https://ubuntu.com/advantage
The programs included with the Ubuntu system are free software;
the exact distribution terms for each program are described in the
individual files in /usr/share/doc/*/copyright.
Ubuntu comes with ABSOLUTELY NO WARRANTY, to the extent permitted by
applicable law.
To run a command as administrator (user "root"), use "sudo <command>".
See "man sudo_root" for details.
administrator@ubuntu:~$
Nice :)
Many thanks to Brian O’Sullivan and Declan Bennett
